Customizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated Power

Yixing Aipu Air System Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

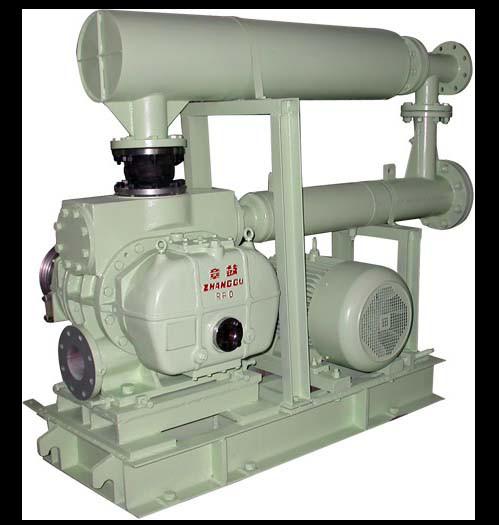

Customizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated Power

Brand Name : Aipu

Model Number : Roots Blower

Place of Origin : China

Certification : ce.ul

MOQ : 1kg

Price : negotiable

Packaging Details : container

Delivery Time : 30

Payment Terms : tt

Supply Ability : 10t/y

Boost : 9.8-98kpa

Type : Tri ( Three) Lobe

Rated Voltage : 380v 50 Hz, 440V 60HZ

Drive : V Belt / Direct Coupling

Rated Power : 3kw-315kw

Inlet Dimension : From 100-350A

Contact Now

Product Description:

Our Roots Blower is suitable for applications such as wastewater treatment, pneumatic conveying, aquaculture, and more. With a temperature range of 0-80°C, our blower is highly versatile and can be used in a variety of settings.

The inlet diameter of our Roots Blower ranges from 100A to 350A, making it ideal for use in different industrial settings.which ensures that it runs smoothly and efficiently.

Our Rotary Positive Roots Blower is a low-pressure blower that is designed to provide maximum performance and reliability. With its positive displacement design, it ensures that there is a constant flow of air or gas through the system, which makes it perfect for use in various industrial applications.

Our Roots Blower is made using high-quality materials, which makes it durable and long-lasting. Additionally, our Roots Blower is designed to be easy to install and maintain, which ensures that it can be used by anyone, regardless of their technical expertise.

If you're looking for a reliable and high-performance Roots Blower, then our Rotary Positive Roots Blower is the perfect solution. With its cutting-edge technology, high performance, and reliability, it is the ideal choice for various industrial applications.

Features:

  • Compared with two-lobe blower,three-lobe blower has a better sealing performance,so air leakage amount is little,efficiency is high.
  • Pressure is high.one-stage adds up to 98kPa(1.0kg/cm),two-stage adds up to 196kPa(2.0kg/cm).
  • Noise is low.Noise-lowing profile and structure are applied,gear accuracy is the ffth class,bearings are imported,and main parts are,
  • NC machined. So.the blower can run for a long time reliably.
  • Low vibration and low noise due to accurate dynamic balanceO Steady running without flow pulsatior.
  • A wide range of capacity and pressure is available,so blowers with low cost can be selected.
  • The transported air is clean and free of oil or dust. Oil lubrication is not needed in the casing.special structure is designed to preventhe bearing oil and gear oil from entering the casing.
  • Simple structure litte outine,light weight.

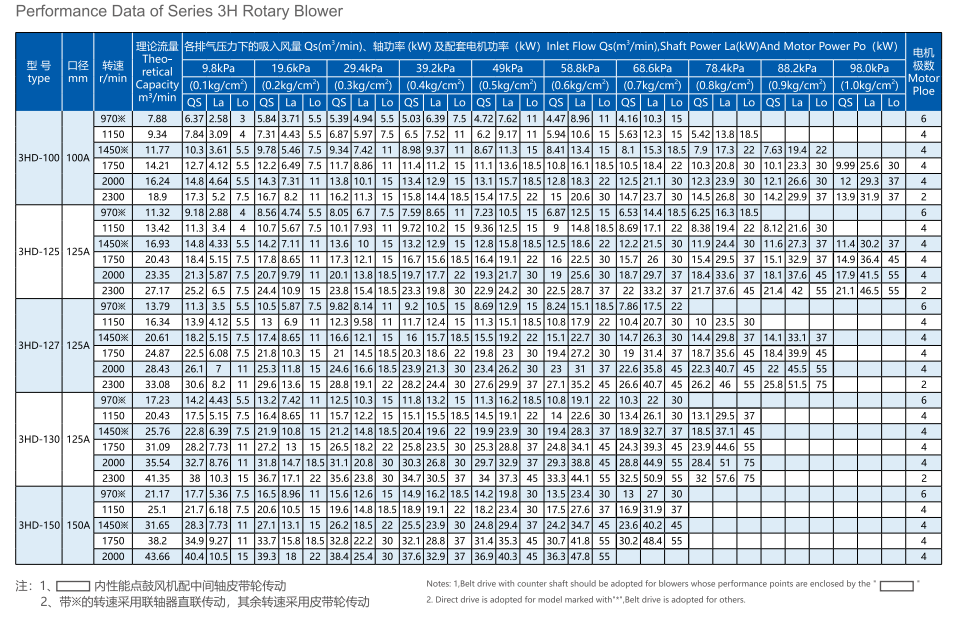

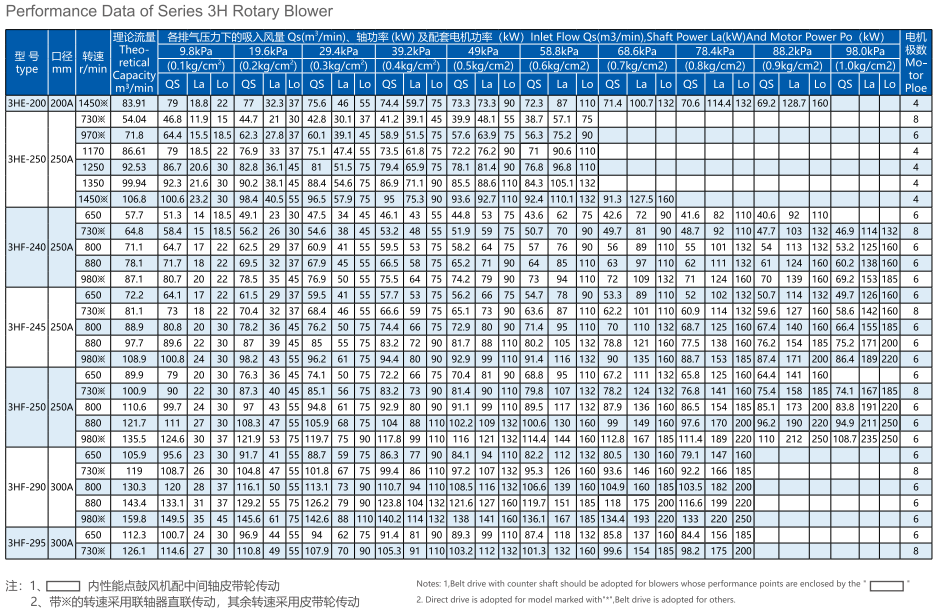

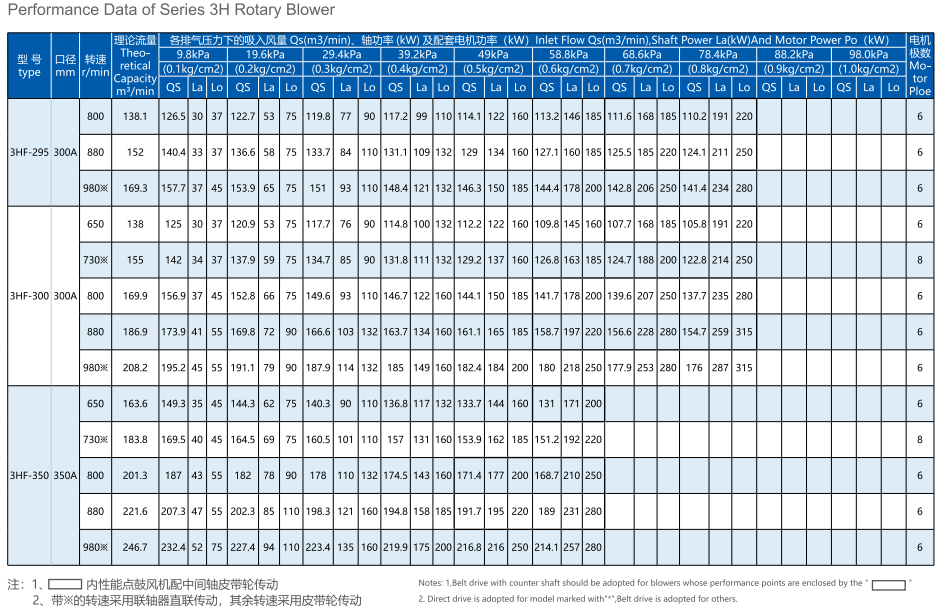

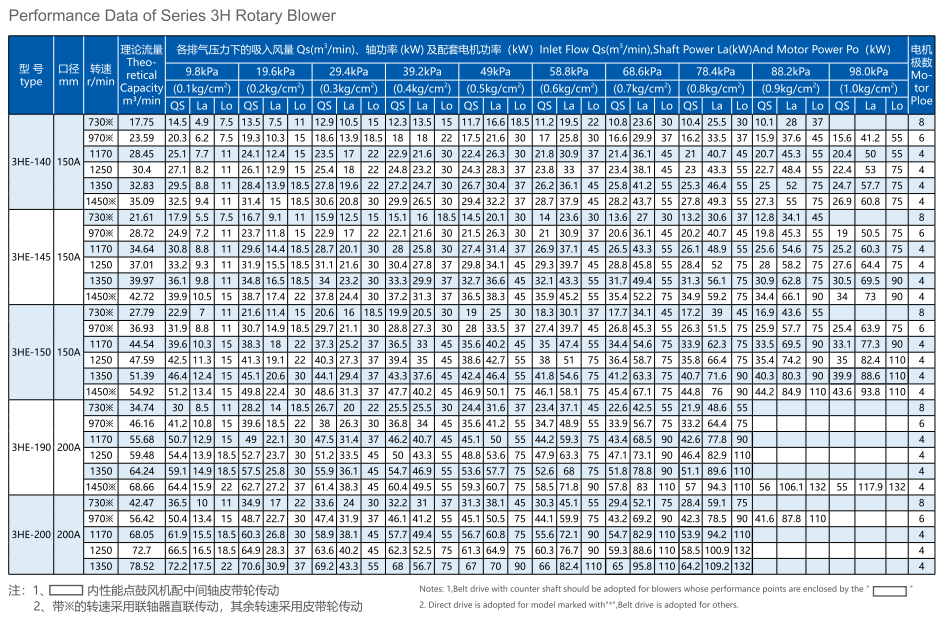

Technical Parameters:

Customizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated PowerCustomizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated PowerCustomizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated PowerCustomizable Industrial Rotary Positive Roots Blower with 3KW-315KW Rated Power

Applications:

The Roots Blower has a model number of 3H Roots Blower, with an inlet diameter ranging from 100A-350A. The technology used is Roots, and it has a tri (three) lobe type. The flow capacity of the Roots Blower ranges from 4.16-232.4m³/min, making it suitable for various applications.

The Three Roots Blower is widely used in wastewater treatment plants, cement plants, and pneumatic conveying systems. In wastewater treatment plants, the Roots Blower is used for aeration, where it provides oxygen to microorganisms responsible for breaking down organic matter. In cement plants, the Roots Blower is used for combustion air to the kiln. In pneumatic conveying systems, it is used for powder and granular material transfer.

The 3H Roots Blower is also used in the chemical industry, where it is used for vacuum distillation, conveying gases, and filtering liquids. In the food industry, it is used for vacuum packing and drying processes. It is also used in the paper industry, where it is used for paper drying and vacuum forming.

The 3H Roots Blower is also employed in the power generation industry, where it is used for fuel atomization, gas boosting, and combustion air. It is also used in the textile industry, where it is used for spinning, weaving, and drying processes.

Packing and Shipping:

Product Packaging:

  • Roots Blower
  • User Manual
  • Spare Parts Kit
  • Warranty Card

Shipping:

  • Shipping Method: Standard Shipping
  • Shipping Time: 5-7 Business Days
  • Shipping Cost: Free
  • Tracking Number: Provided

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Aipu.

Q: What is the model number of this product?
A: The model number of this product is Roots Blower.

Q: Where is this product made?
A: This product is made in China.

Q: Does this product come with any certifications?
A: Yes, this product is certified by ce.ul.

Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1pc.

Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.

Q: How is this product packaged?
A: This product is packaged in a container.

Q: What is the delivery time for this product?
A: The delivery time for this product is 30 days.

Q: What are the payment terms for this product?
A: The payment terms for this product are tt.

Q: What is the supply ability for this product?
A: The supply ability for this product is 10 tons per year.
